Shimano gives the Press a hands-on look at its two gravity ensembles, Saint and ZEE, at a catered luncheon attended by select bike designers and pro racers who had a hand in their development. The actual product looked much more impressive than the press-release images led us to believe. Those hoping for radical new innovation may be let down, but hard core riders who want tangible improvements will be quite happy. The new Saint was driven by input from racers and carryovers developed for XTR, like the addition of the Shadow Plus one-way clutch and Shimano's more linear shifting DynaSys ten-speed metrics. Shimano surprised many with its affordable ZEE gravity ensemble, designed to bring most of the features and durability of Saint to a component lineup targeted at weekend warriors and budget racers. We thought you might like to see the new parts up close and personal

x

Saint 2013 - Stronger and Quicker

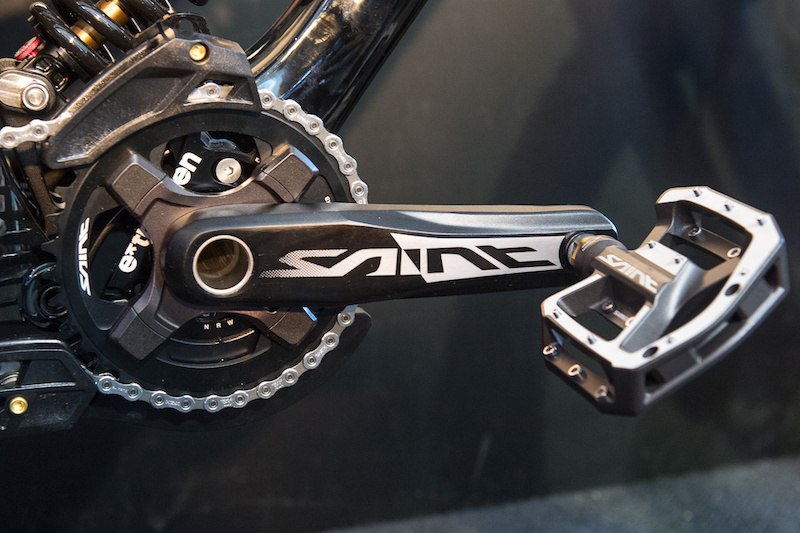

Saint cranks are hollow forged duraluminum (a super-strong 7000 alloy) with a tubular steel bottom bracket that is claimed to be 250-percent stronger than XTR. Shimano Saint supports press fit and threaded bottom bracket types. Chainrings are available in 34, 36 or 38 tooth options

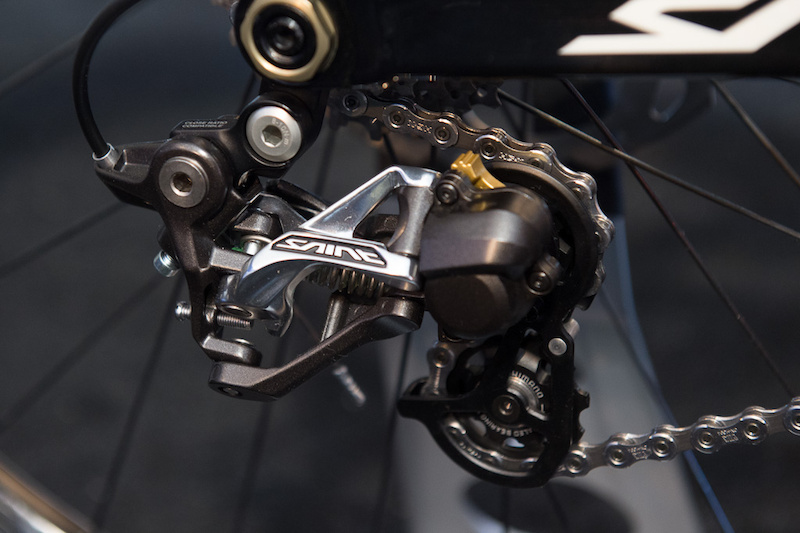

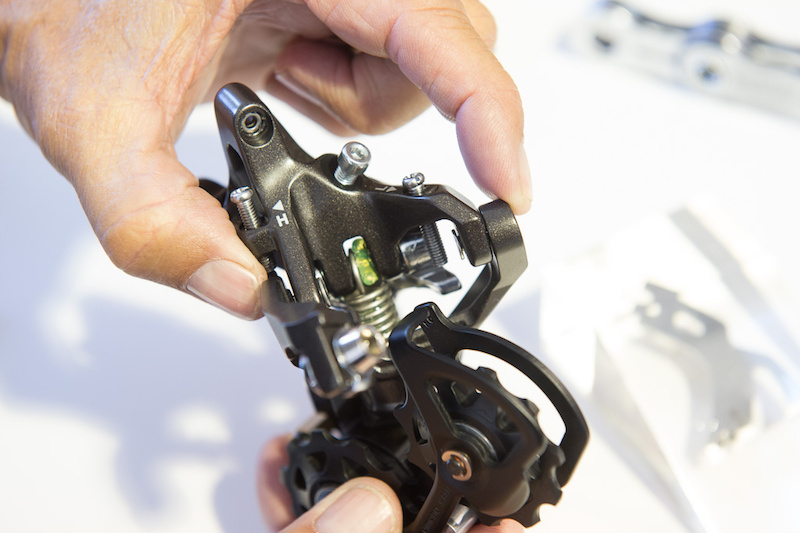

Saint rear derailleurs are updated with Shimano's Shadow Plus chain stabilizing clutch system. The gold lever above the cage pivot is the engagement switch. A removable mode chip on the derailleur mount converts the parallelogram's sweep angle to follow a close-ratio DH cassette or a wide-ratio XC sprocket stack for enduro use

内容被和谐了

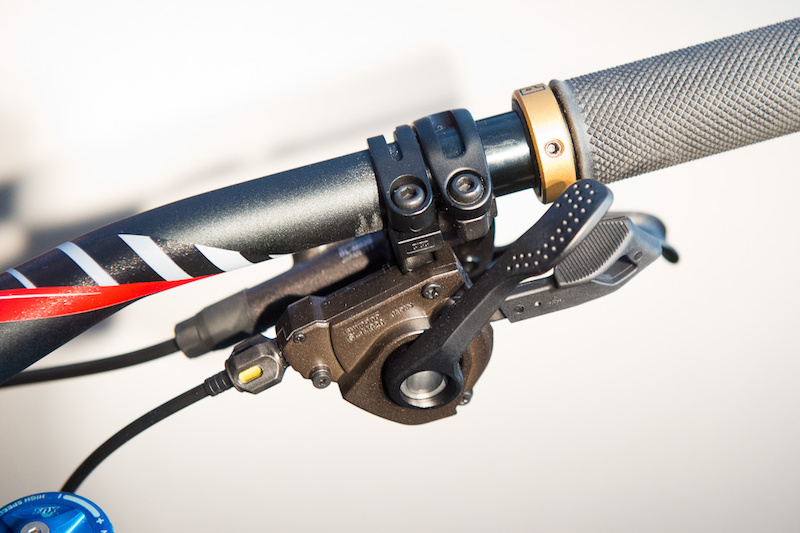

The Saint Shift lever has been lengthened slightly and it pivots on ball bearings to overcome the added resistance of the Shadow Plus clutch. The action is smooth, with a generous amount of feedback with each shift. Two shifts can be made with one push of the thumb paddle, while the return lever metes out one shift at a time.
Santa Cruz Syndicate's Greg Minnaar raved about the new mech saying that, '...it shifts instantly when I push on the lever, rather than having to push and wait for the shift on the lever's return stroke

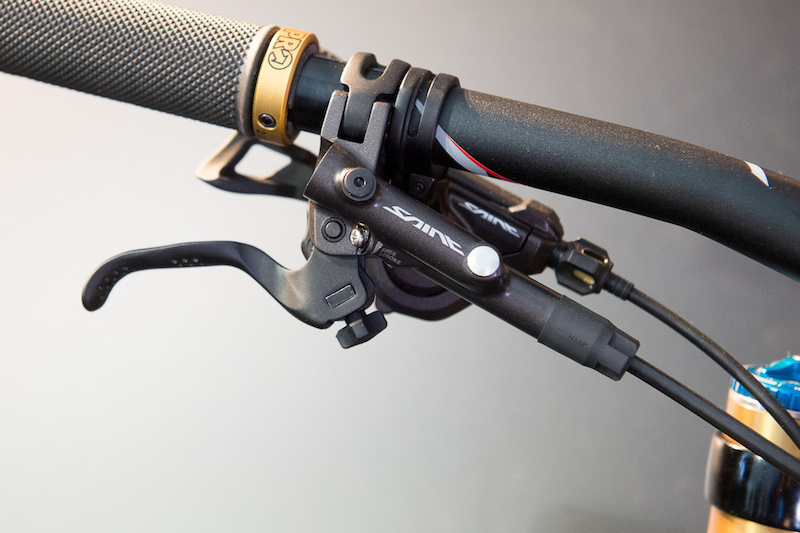

The new Saint brake lever is short and lightweight, with a quick-acting ServoWave mech to ensure that the four-piston caliper reacts instantly to the rider's command. Shimano stiffened the hoses and boosted the flow rates of the fluid to provide a more accurate feel at the brake lever. Textured holes on the lever blade (as well as a file-pattern on the shift paddles) assist wet-weather performance

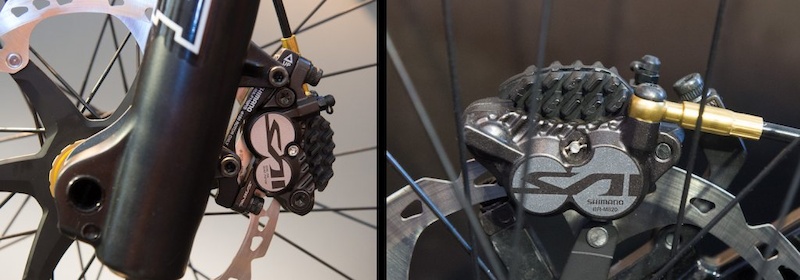

Saint's four-piston caliper houses ceramic pistons that block heat from the hydraulic fluid. Asymmetrical piston diameters reportedly reduce noise. A steel buffer plate distributes clamping force to aluminum-backed sintered metal brake pads which feature ICE tech cooling fins. Shimano claims that Saint brakes are 150-percent stronger than XTR - the equivalent of increasing the rotor diameter two sizes larger. Note the extended aluminum banjo fitting - another improvement to insulate the fluid from heat

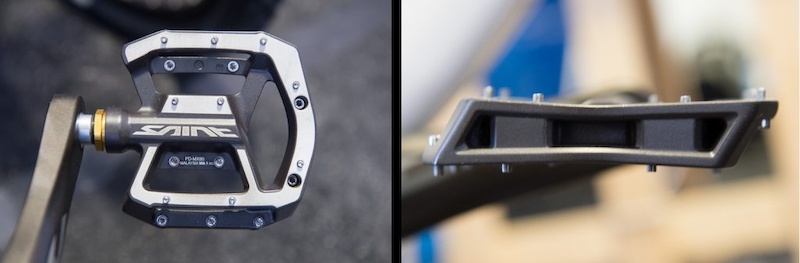

Saint gets a dedicated pedal, with sealed ball bearings, a concave platform and pins that are replaceable from the back-side. The profile is acceptably thin for a platform that features a durable spindle and bearing system

Strangely missing at Shimano's 2013 Saint launch were its latest ICE Tech brake rotors (as shown in a press release earlier this week). The aluminum core, sandwiched between the stainless steel braking surfaces has been extended into the ID of the rotor to form a wavy cooling fin which is reported to dissipate heat more quickly. Shimano says that the new rotor will appear in May

每次都那么快

very good , but english ****ing hard

ZEE 2013 - Powerful Tools for Gravity Riders on a Budget

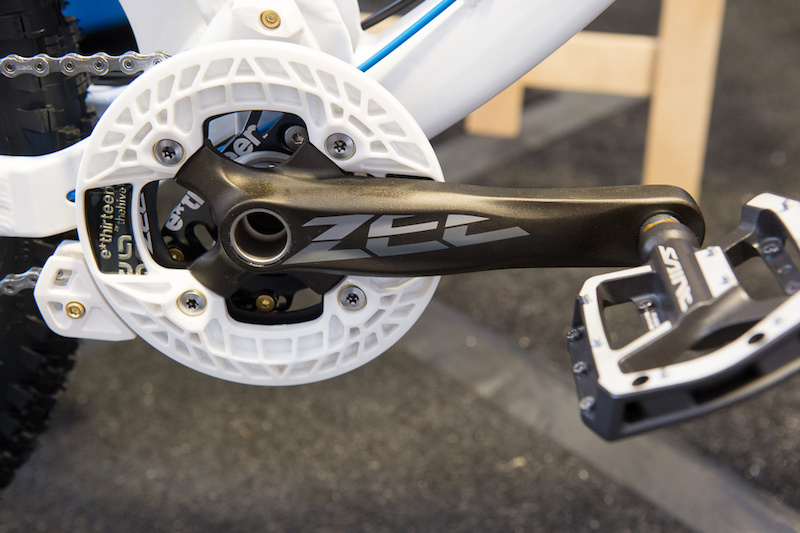

Zee cranks use forged, solid 6000-alloy arms and share the same bolt pattern as Saint and XT, so all Shimano-compatible chainguides and bash rings can be used with the crankset. Gearing options are 34, 36 and 38 teeth

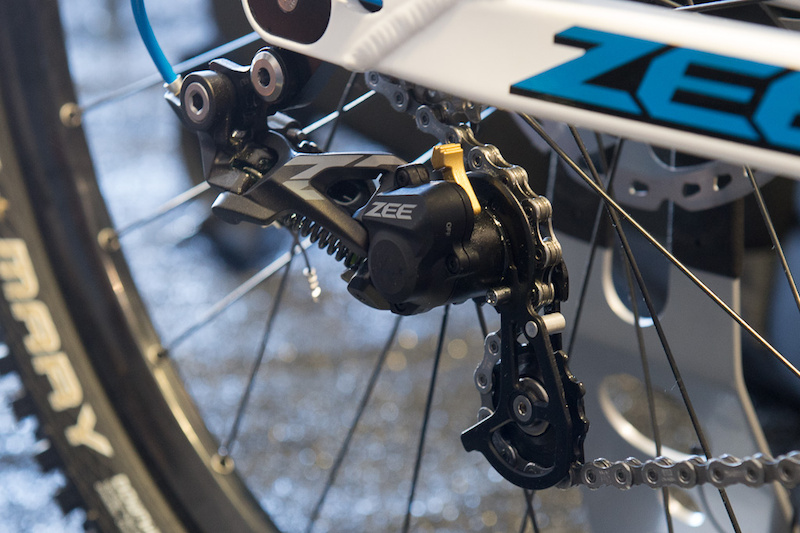

Zee rear derailleurs share the Saint's medium-length pulley cage and the Shadow Plus chain control clutch. The parallelogram, however, lacks the Saint's super wide pivot stance and is built on the same geometry as SLX. The ZEE derailleur lacks the Saint's mode-change function, but separate B2 links are available to cause the derailleur to follow close or wide ratio cassettes. Both models were on display at the launch

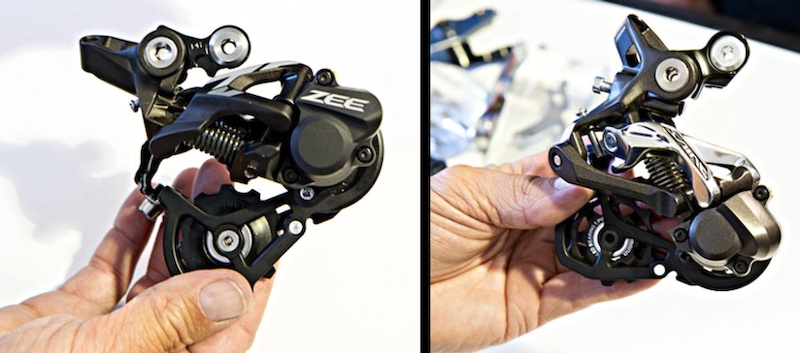

Shmano's lower-cost ZEE rear derailleur (left) compared with the 2013 Saint changer. Note how sturdy the Saint derailleur is constructed

欣赏东西 我一向很积极~~~

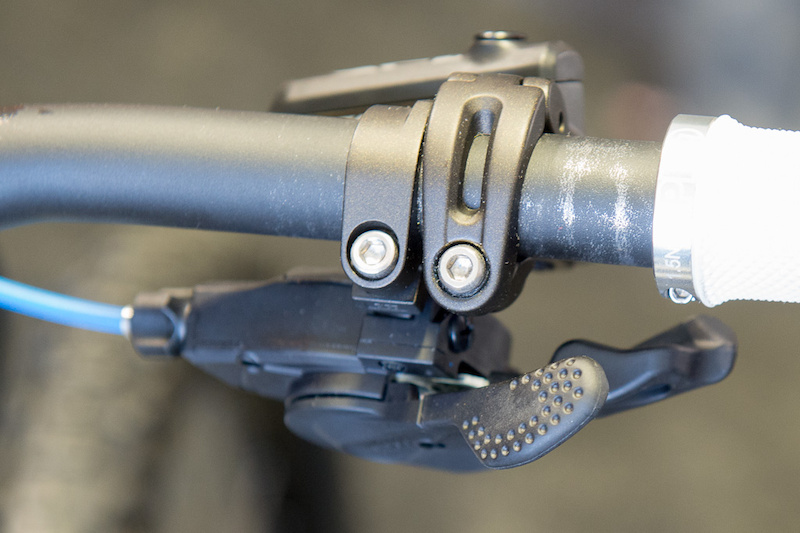

ZEE shift levers lack the Saint's super-smooth-running ball bearings, but retain the longer levers and lighter action to compensate for the Shadow Plus system

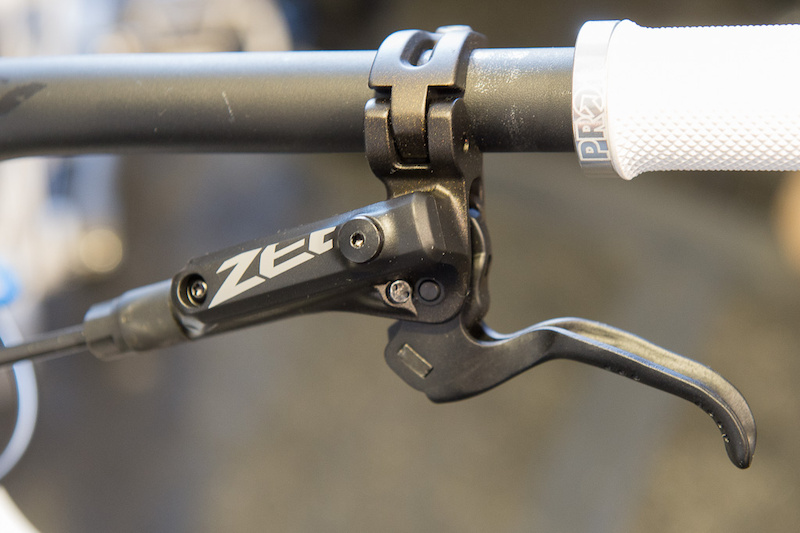

ZEE 的手执缺乏 Saint的 cosmetics 和 external reach 调节, but it 有 the fast-acting ServoWave mech 和 the hydraulic internals技术是和Saint相同的, 保证了ZEE 用户将会享受到相同的刹车力量和一指操控的感受. Saint和 ZEE 都使用了Shimano的 ISPEC integrated shift/brake lever 系统。

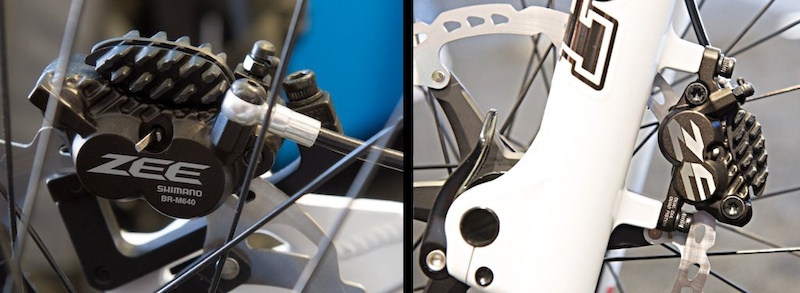

Shimano found a way to bring its hard-stopping four-piston caliper to ZEE - ceramic pistons and all. You won' t find ICE Tech rotors on ZEE brakes, but you will get cooling fins and sintered metallic brake pads.
